Module Number: NS900B

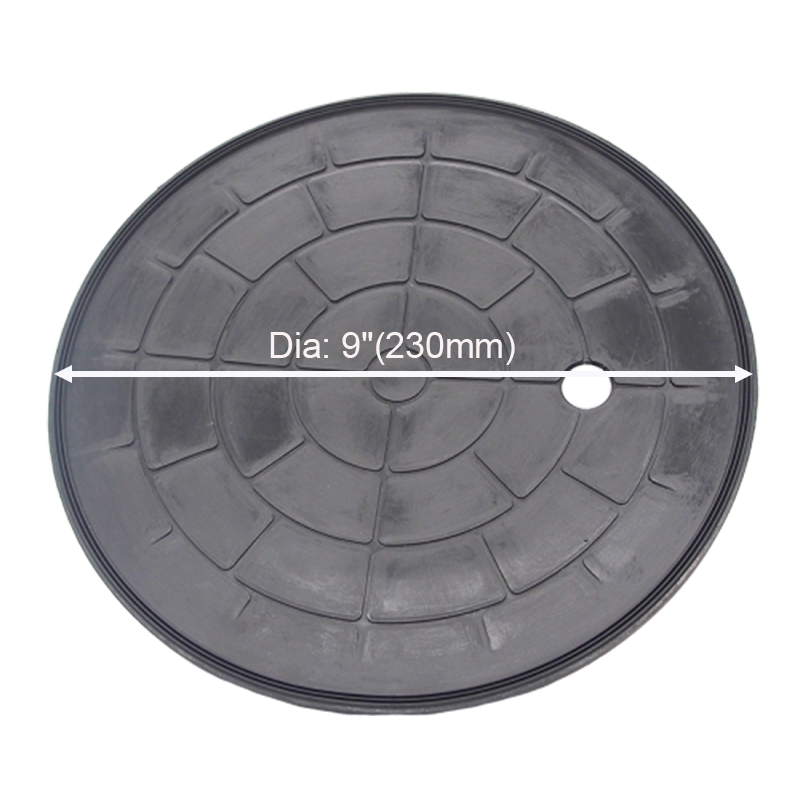

Pad Diameter : 230mm
Net Weight : 900g
Loading Capacity : 230kgs
Meterial : Rubber & Metal & ABS
Package : 1pc/plastic box
Remark : OEM Welcome
Supply Ability: 2000 Piece/Pieces per Day

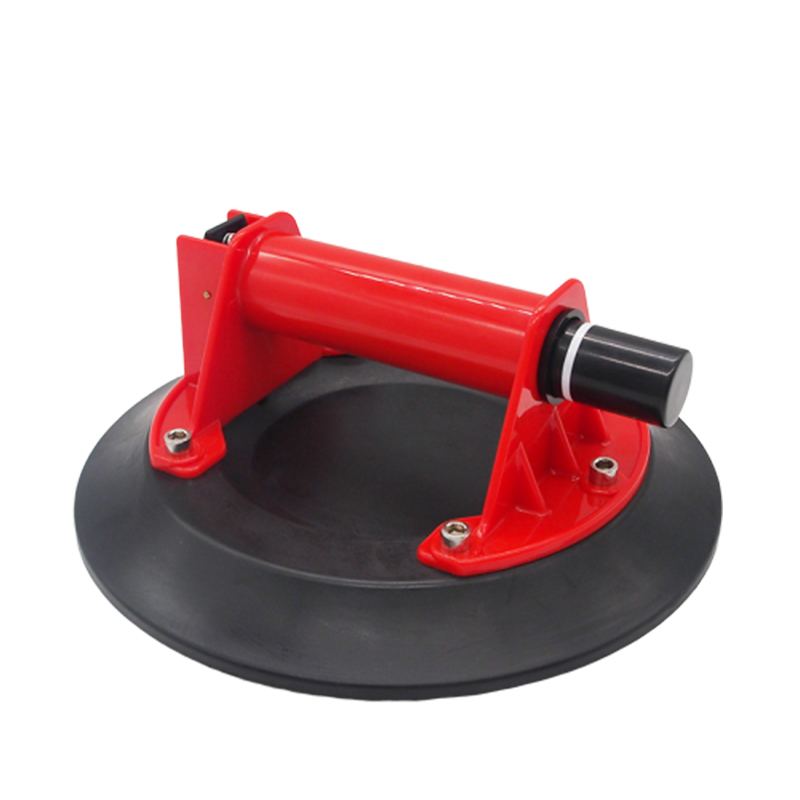

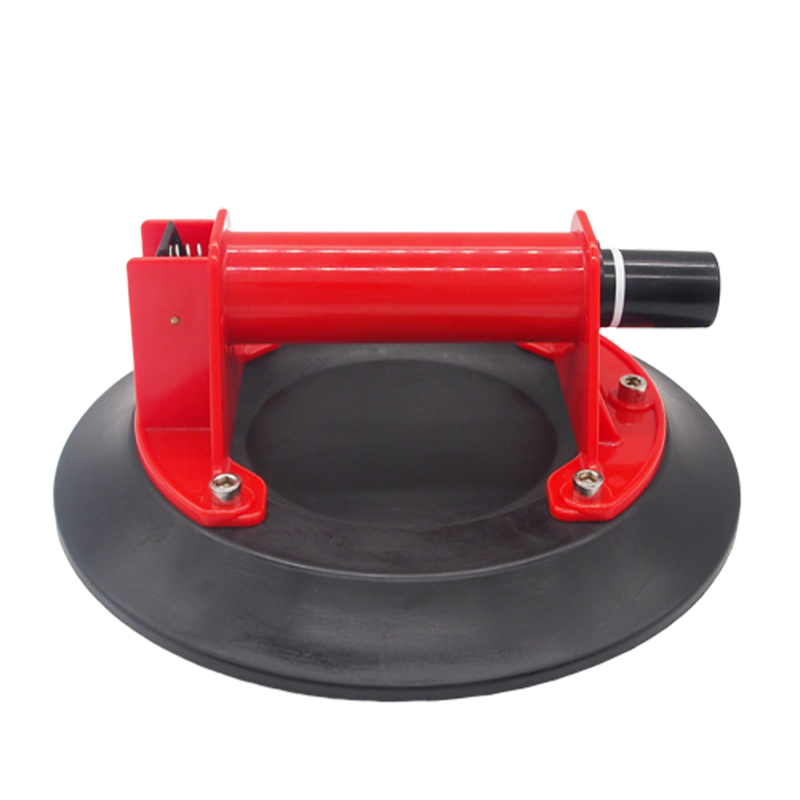

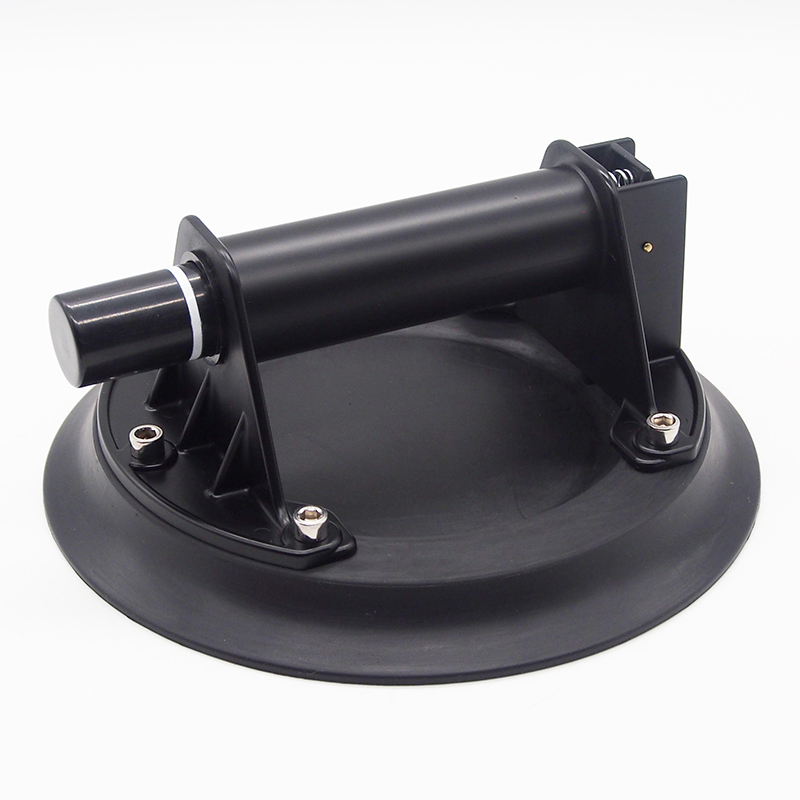

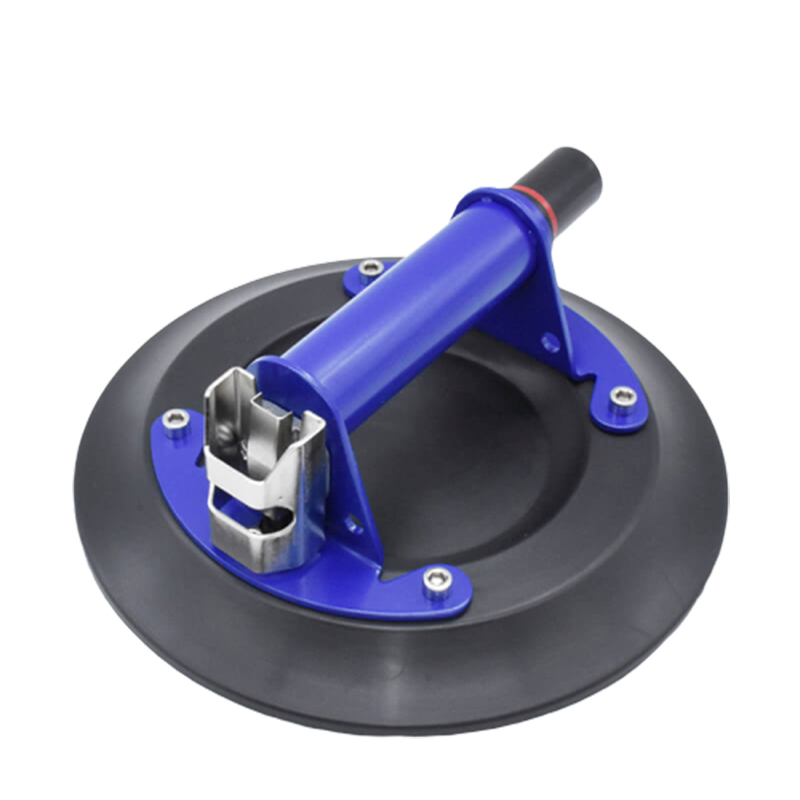

RC 9" NS900B hand-held vacuum suction cup for Granite & Glass lifting
9" Hand Cup for Flat Surfaces
About RC 9" NB900B hand-held vacuum suction cup
With the capacity for nearly any manual lift, N-series hand cups are rugged and dependable. The choice of industry professionals, use them for moving and positioning windows, counter tops, appliances, patio doors, desks, filing cabinets and vending machines. Supplied with protective carrying case.
Production Description

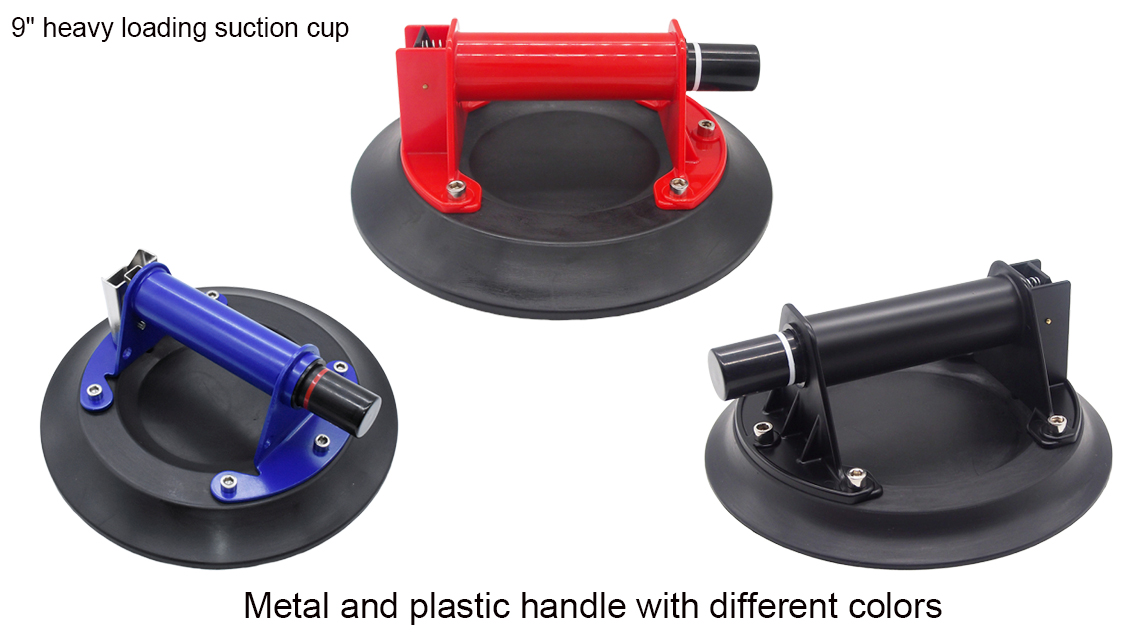

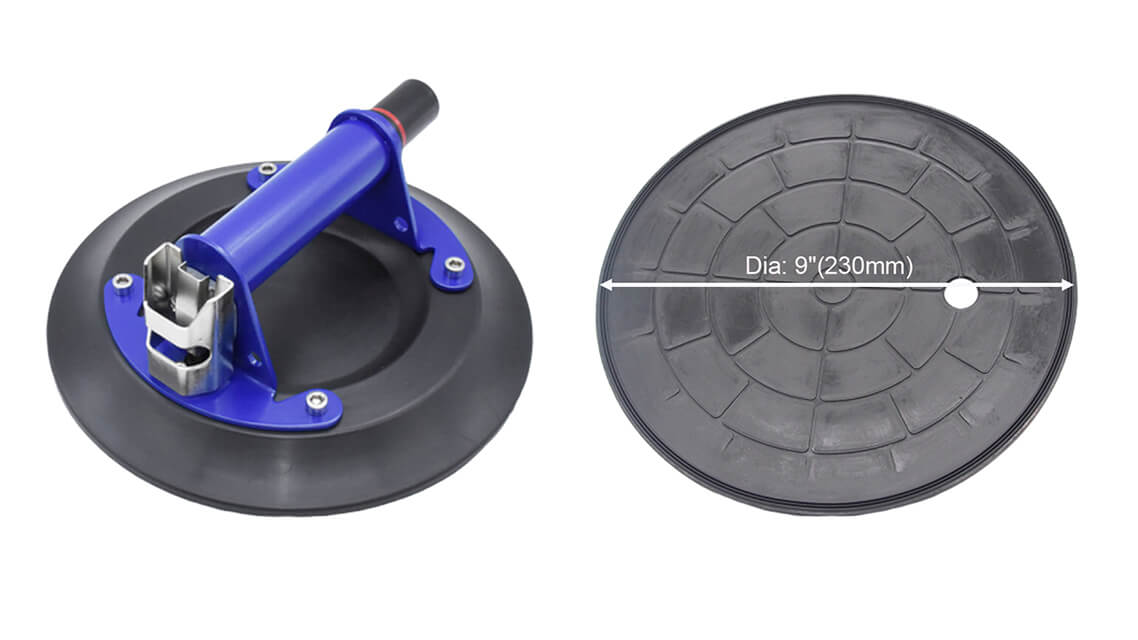

RC 9" NS900B hand-held vacuum suction cup, 23cm diameter pad with 330 lbs(150kgs) to 700 Ibs(320kgs) super powerful level lifting capability. Humanized design with different colors durable plastic & metal handle and an Anti-aging rubber pad provides a sturdy and ergonomic handle. Fast attachment on flat, nonporous surfaces, which could works in -30℃ to 100℃ temperatures, and keep the vaccum for 72 hours，furthermore, the vacuum cup can works underwater.
Features
★Faster and Safer: fast attachment on clean, smooth, nonporous surfaces within 5s. 700 Ibs(320kgs) maximum lifting capacity.
★Made with Eco-friendly Materials: The glass suction cup pad is made with durable, odorless, extra strength rubber and the all metal handle for a strong and ergonomic grip.

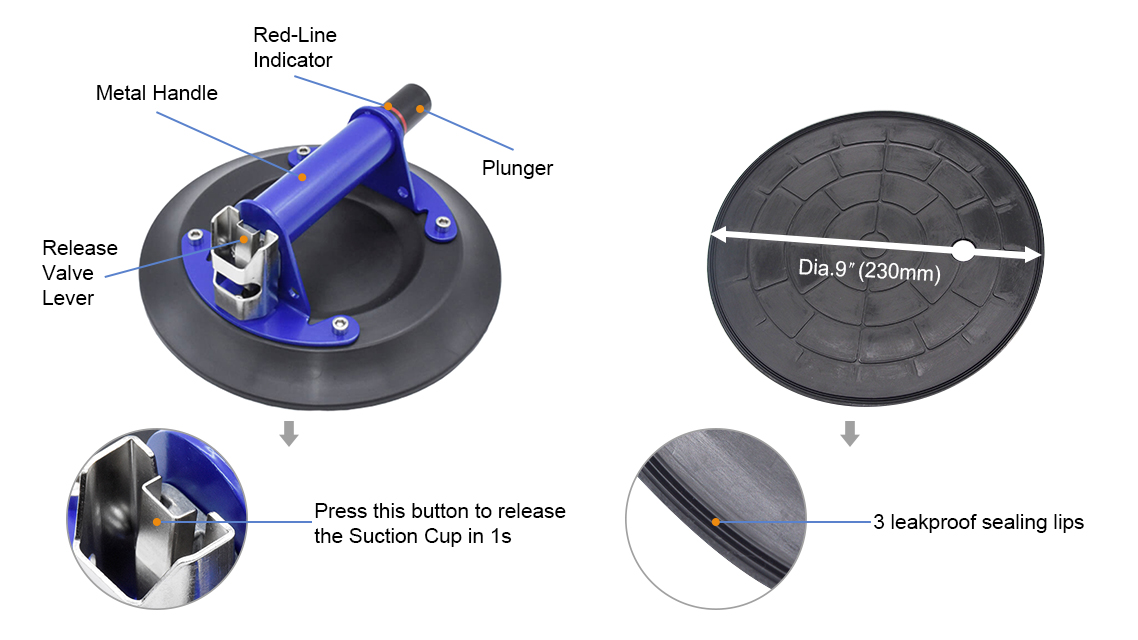

★Safe Indicator: The Red-Line or White-line Indicator Warns User of Any Vacuum Loss. When it shows less than 100% vacuum left, simply pump the plunger until you reach the original vacuum pressure without removing the cup from the glass.
★Simple to Use: Pump the plunger just a few strokes, the cup will attache the surface completely. Release Valve Lever Permits Quick and Complete Release.
★Premium Quality with Excellent Customer Service: The suction cups has been approved with CE, SGS, RoHS, PAHS certifications. Warranty: 1.5 year 100% satisfied quality guarantee.
★Easy storage: Each vacuum suction cups comes with a free Durable protective carrying case.
How to use: The indicator line warns the user of any vacuum loss.
★CAUTION: Test the cup for staining or deformation of load surfaces with light colors or soft coatings.
Moisture or contaminants can reduce the slip resistance of the cup. Surfaces should be free of oil, grease or water
1) Place the suction cup on the contact surface so that the red line can be seen.
2) Pump the plunger until the cup is fully connected. When the red line is hidden, the vacuum is sufficient to increase.
3) Check the plunger frequently to make sure the cup is securely connected. If a red line appears during lifting, re-pump the plunger immediately until the red line is hidden again.
4) Releasing the valve stem allows for a very fast and complete release.
5) Designed specially of the 2 ears on the handle which perfectly allows the team to lift with the rope.
Wide range of applications:
●glass：such as automotive windshields，aquarium，shower doors, mirrors,
●granite, tiles, polished stones, stone slabs, etc.
●metal, plastic and furniture where curved/flat, clean, smooth, non-porous surfaces."
★ Ideal for lifting and moving anything
